Github Action 尝试报告

Rhilip 2020-02-27 PM 4866℃ 0条

近期,我为个人的三个仓库分别添加了 GitHub Action 作为CI,此前我也使用过 Travis CI作为CI服务(见 Rhilip/pt-gen-cfworker),但此次尝试仍有部分地方觉得很有意思,便于此记录。这三个仓库及其使用Action的目的分别如下:

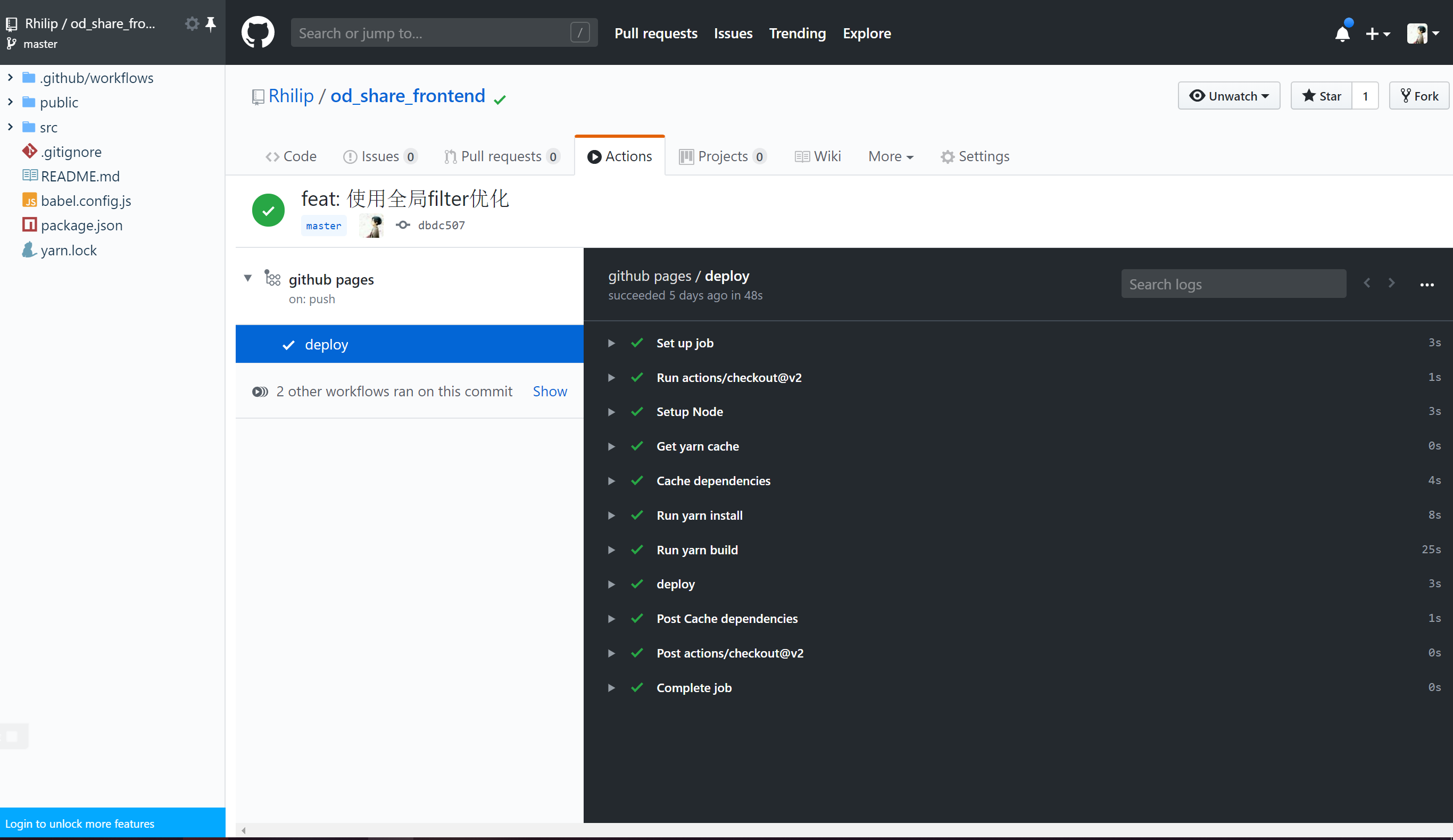

基于Vue的gh-page自动构建及部署

Action文件示例: https://github.com/Rhilip/od_share_frontend/blob/master/.github/workflows/gh-pages.yml

Vue的这个稍显简单,主要的部分参见了 GitHub Pages action · Actions · GitHub Marketplace 中的Vue站点部署章节。稍微有些不同的是,示例里面的依赖安装以及cache使用了npm,但我实际应该使用yarn作为依赖安装的工具。

所幸,上面 React and Next 的示例部分就说明了yarn的依赖安装和cache使用,仅简单修改适配便可以使用。

使用crontab定时更新

Action 文件示例:https://github.com/Rhilip/ipv6wry.db/blob/master/.github/workflows/update.yml

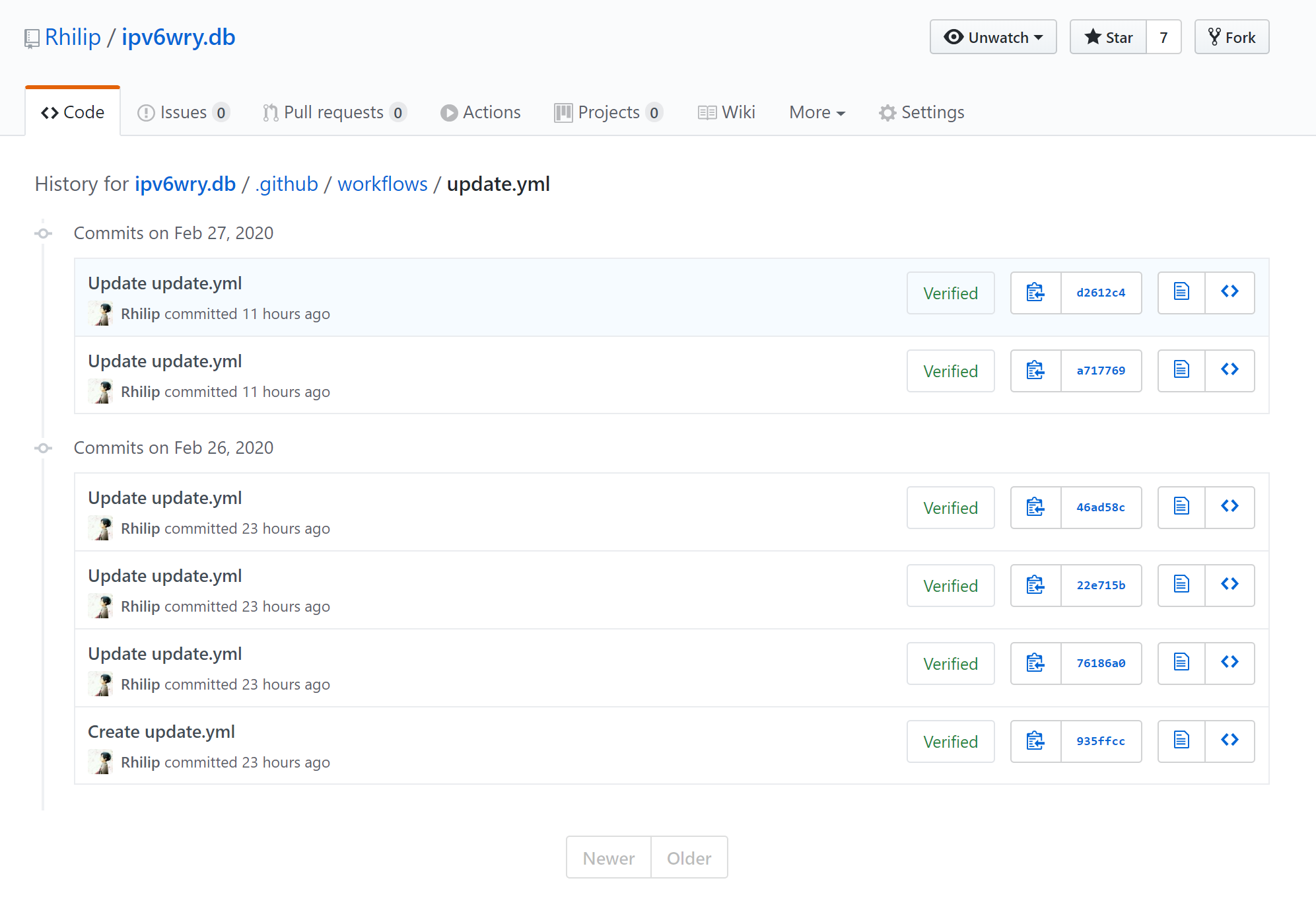

ipv6wry.db这个仓库的自动更新文件算是我写的第一个的action.yml了,所以写的磕磕绊绊的(6次commit)

首先,作为一个定时脚本,在.github/workflows中push成功之后,在Action面板中不能看见。必须等到设定的时间之后才能显示出来,再加上初次书写,查看 GitHub Action 的帮助文档多次后,才写出一个结果目前看起来正常的workflow。


这个workflow的基底是仓库中原有的 update_ipv6wry.sh ,伪代码片单简单示例如下:

# 变量定义
# 跳转到脚本所在目录
# 获得历史存档,并得到最后一个更新历史
# 请求当前页面信息并获取更新日期

# 比较查看是否存在更新
if update; then
    # 下载数据包到临时目录并解压缩
    # 复制`ipv6wry.db`文件到 `history/{date}/`, `./`
    # 获得更新信息
    # 更新历史 (README.md中的 IP数据记录 | 数据库大小 信息)
    # 清理临时文件
    # 提交更新
fi

在将其转换为GitHub Action之后,变量定义移动至 env 节中,并使用 ${{ env.key }} 方法进行调用;而目录跳转(用于bash中)以及temp目录指定,则直接使用 ${{ github.workspace }} 以及 ${{ runner.temp }}

此外,因为 Github Action使用的Ubuntu 18.04中默认已经安装了 7zip以及jq 库,所以相关依赖也不需要进行安装。那么,如何判断确定是否存在更新,仍然使用了if方法(step级别):

    - name: Get last version
      id: last-history
      run: |
        max_history_version=0
        for i in $(ls '${{ github.workspace }}/history'); do
            test_version=$((${i} + 0))
            [[ ${test_version} -gt ${max_history_version} ]] && max_history_version=${test_version}
        done
        echo "::set-output name=last::${max_history_version}"
    - name: Get current version
      id: current-history
      run: |
        echo "::set-output name=current::$(($(curl -L "${{ env.ZXINC_CHECK_URL }}" | jq -r '.newver' ) + 0))"
    - name: Unpack New version
      id: unpack-new
      if: steps.current-history.outputs.current > steps.last-history.outputs.last
      run: |

首先,两个 step (last-historycurrent-history) 分别获得两个输出,在进入 step unpack-new的时候,通过 if 进行判断,判断结果成立才运行对应step。值得注意的是,最早step中 if 写成了bash中的写法 ${{ steps.current-history.outputs.now }} -gt ${{ steps.last-history.outputs.last }} 。直接报错:Workflow Error,具体错误栈如下:

### ERRORED 00:09:50Z

- Your workflow file was invalid: The pipeline is not valid. .github/workflows/update.yml (Line: 39, Col: 11): Unrecognized named-value: 'steps'. Located at position 1 within expression: steps.current-history.outputs.current,.github/workflows/update.yml (Line: 59, Col: 11): Unrecognized named-value: 'steps'. Located at position 1 within expression: steps.current-history.outputs.current

后面修改成直接判断 steps.current-history.outputs.current > steps.last-history.outputs.last才正常。可见在 if 段对字段的调用,不需要像run 段中一样。

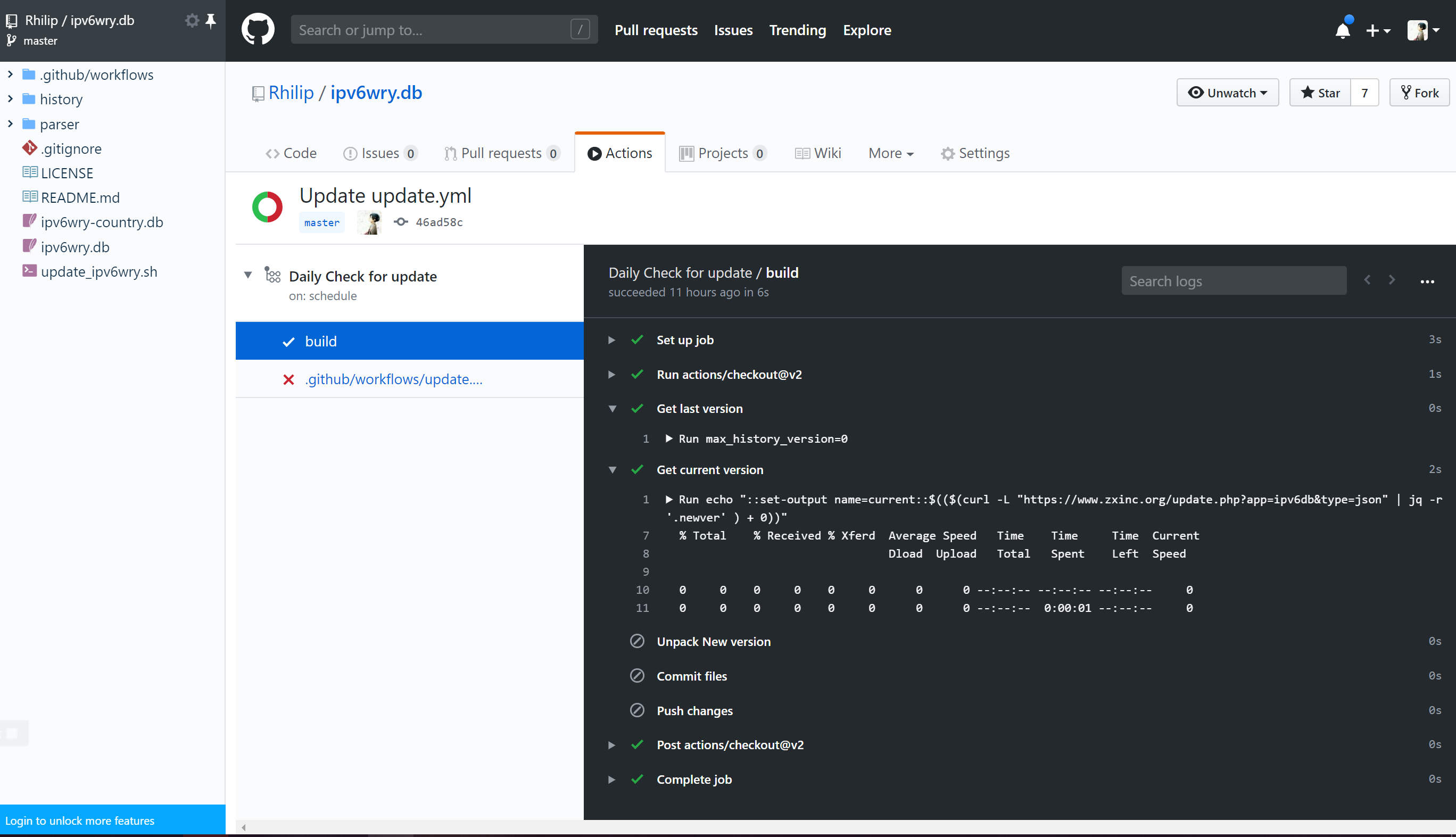

至于这个脚本,后面三段 ( Unpack New version、 Commit files、 Push changes)能否正常运行,我也不清楚,毕竟从目前结果来看,这三段现在都处在不运行的阶段。。。。


PHPUnit自动测试并生成coverage报告上报

Action 文件示例: https://github.com/Rhilip/Bencode/blob/master/.github/workflows/codacy-analysis-cli.yml

Bencode是本人写的Bencode库,原本打算是为了给ridpt、ob、tjupt等项目以composer库的形式统一提供以方便维护。在有人提出添加测试 (#1)之后,便为此添加相关测试以及测试覆盖率报告。

这个workflow一开始不知道在写些什么,从Market中搜到有个action可以使用就直接对着抄了,没想到自己composer install都没做。。。。 (@b4b38ba)

name: codacy-analysis-cli

on: ["push"]

jobs:
  codacy-analysis-cli:
    runs-on: ubuntu-latest
    name: codacy-analysis-cli
    steps:
      - uses: actions/checkout@master
      - name: Run codacy-analysis-cli
        uses: mrfyda/codacy-analysis-cli-action@master
        with:
          project-token: ${{ secrets.CODACY_PROJECT_TOKEN }}

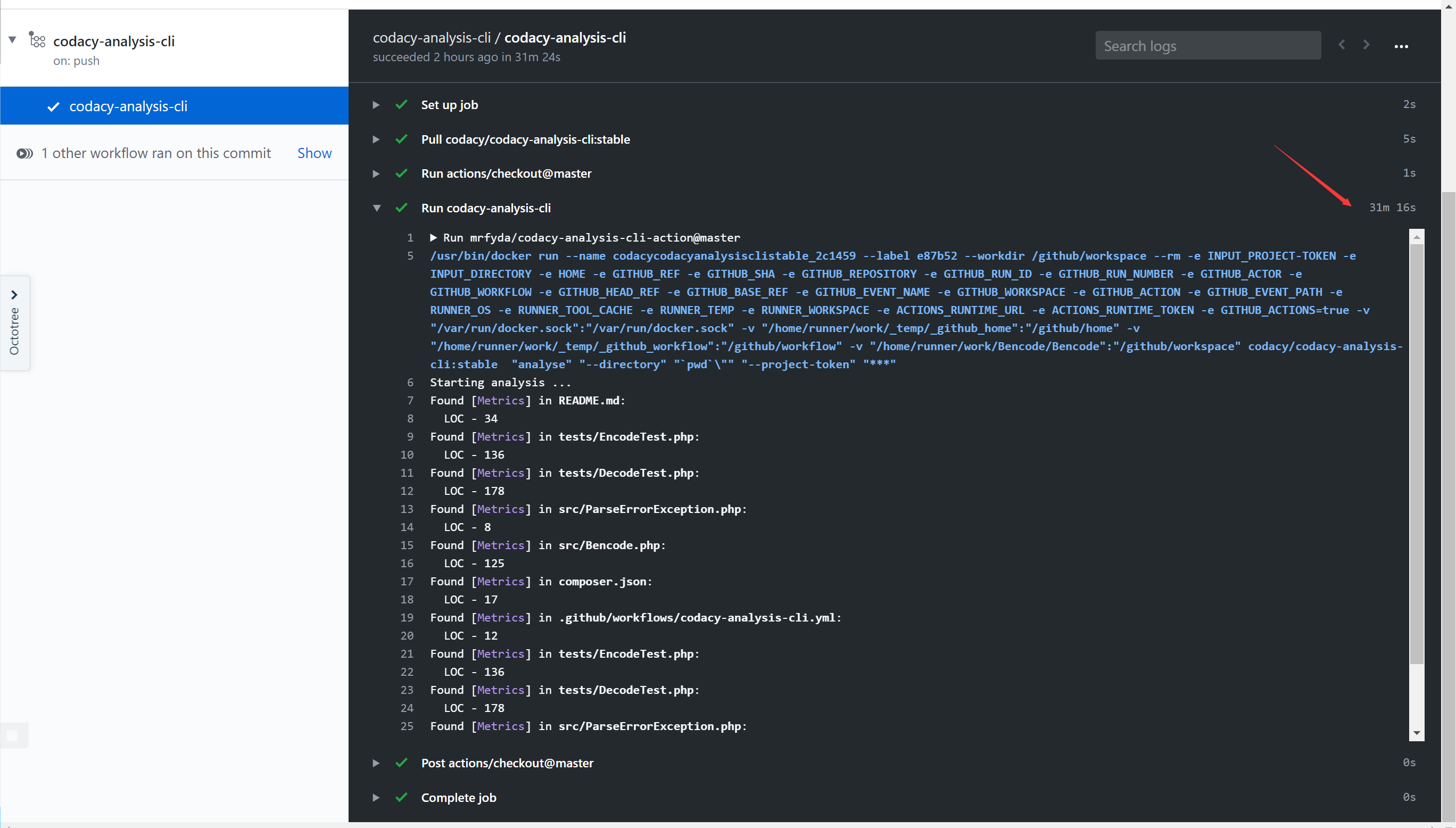

另外有个原因就是由于 mrfyda/codacy-analysis-cli-action 这个模板使用了Docker,导致运行时间过长。在重新查阅codacy相关说明之后,决定抛弃这个模板。改成直接运行。


最终生成的workflow.yaml如下:

name: covered-cli

on: ["push"]

env:
  CODACY_PROJECT_TOKEN: ${{ secrets.CODACY_PROJECT_TOKEN }}

jobs:
  covered-cli:
    runs-on: ubuntu-latest
    name: covered-cli
    steps:
      - uses: actions/checkout@master
      - name: Cache dependencies
        uses: actions/cache@v1
        with:
          path: ${{ github.workspace }}/vendor
          key: ${{ runner.os }}-composer-${{ hashFiles('**/composer.json') }}
          restore-keys: |
            ${{ runner.os }}-composer-

      - name: Composer install
        run: composer install --no-interaction --prefer-source --dev

      - name: Run PHPUnit
        run: vendor/bin/phpunit --coverage-clover 'clover.xml' tests/

      - name: Run codacy-analysis-cli
        run: |
          curl -LSs "$(curl -LSs https://api.github.com/repos/codacy/codacy-coverage-reporter/releases/latest | jq -r '.assets | map({name, browser_download_url} | select(.name | endswith(".jar"))) | .[0].browser_download_url')" -o codacy-coverage-reporter-assembly.jar
          java -jar codacy-coverage-reporter-assembly.jar report -l php -r clover.xml

其中 CODACY_PROJECT_TOKEN 在Codacy面板获取之后填入仓库的secerts中。

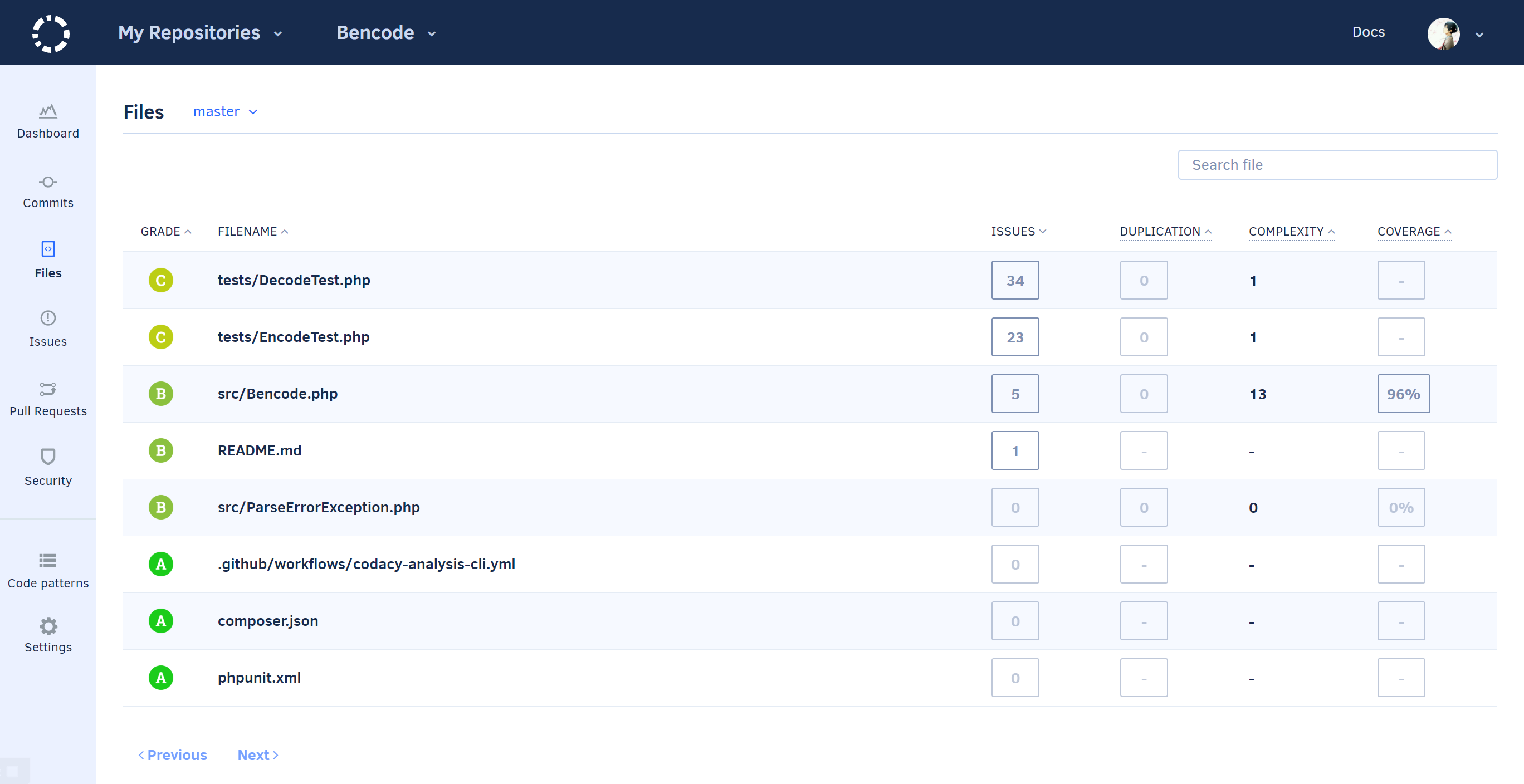

目前来看测试的覆盖率还可以:
